Product description

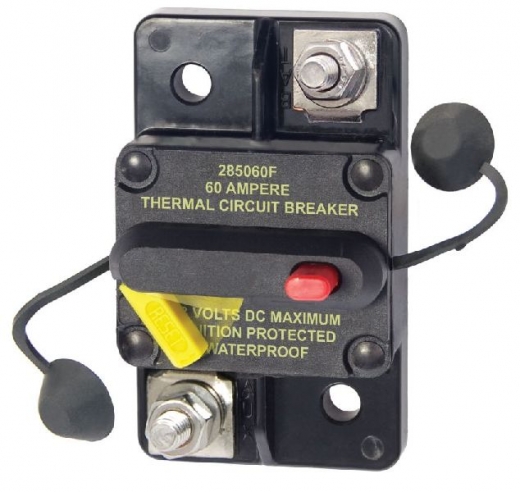

285-Series Circuit Breaker
Provides circuit protection and switching function at the same time.
Suitable for high currents.
- Visible yellow reset lever indicates open status
- Reclosing protection after tripping
- Drop-in replacement for 185 series circuit-breakers
- 3000 A interrupting capacity at 48 V DC (in accordance with SAE J1625)
- Operating temperature -40 to 85 °C
- M6 connections
- Mounting holes suitable for M6
- Protection class IP67
Provides circuit protection and switching function at the same time.
Suitable for high currents.
- Visible yellow reset lever indicates open status
- Reclosing protection after tripping
- Drop-in replacement for 185 series circuit-breakers
- 3000 A interrupting capacity at 48 V DC (in accordance with SAE J1625)
- Operating temperature -40 to 85 °C
- M6 connections
- Mounting holes suitable for M6
- Protection class IP67
